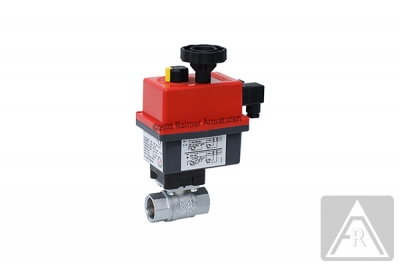

2-way ball valve - brass G 1/2", PN 40, female/female - electr. operated (230 V), operating time: 17 s, IP 65

2-way ball valve - brass G 1/2", PN 40, female/female - electr. operated (230 V), operating time: 17 s, IP 65

Article number: A16EH04

2-way ball valve -brass -female/female

full bore, T= 0 up to 110°C (for fluids), T= -20 up to 60°C (for gas), threaded end connectionsacc. to ISO 228/1, body: brass-chrome plated, ball: brass-chrome plated, seats: PTFE, stem seals: FKMElectric actuator 1AH010 - 230 V AC/DCwith 90° rotation, torque: 10 Nm/12 Nm, 85 - 240 V AC/DC, operating time: 17s, IP 65, -20°C up to 70°C, duty: 75%, heater: 4 W, plastic housing (Nylon PA6), electronic torque limiting, optical position indicator, two limit switches for signal Open/Close, manual override

Article overview

Article no A16EH02 A16EH03 A16EH04 A16EH05 A16EH06 A16EH07 A16EH08 A16EH09 A16EH10 A16EH11
Nominal pressure [bar] 40 40 40 40 40 25 25 25 25 25
Overall length [mm] 65 65 65 75 86 95 101 120 165 188
Weight [kg] 1.1 1.1 1.1 1.2 1.5 2.75 3 3.9 6.3 8
Show Show Show Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
2-way
Connection method
Thread
Material
Brass
Actuation type
Electrically
Nominal width / Thread
1/2"
Approval
Without approval
Weight
1100 g
Overall length
65 mm
