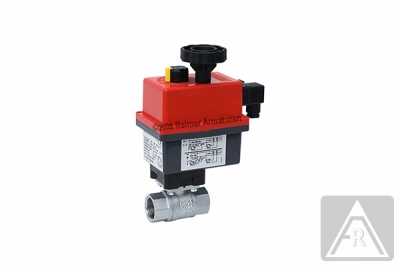

2-way ball valve - brass G 1/2", PN 40, female/female - electr. operated (24 V), operating time: 17 s, IP 65

2-way ball valve - brass G 1/2", PN 40, female/female - electr. operated (24 V), operating time: 17 s, IP 65

Article number: A16EL04

2-way ball valve -brass -female/female

full bore, T= 0 up to 110°C (for fluids), T= -20 up to 60°C (for gas), threaded end connectionsacc. to ISO 228/1, body: brass-chrome plated, ball: brass-chrome plated, seats: PTFE, stem seals: FKMElectric actuator 1AL010 - 24 V AC/DCwith 90° rotation, torque: 10 Nm/12 Nm, 12-48 V DC / 15-48 V AC, operating time: 17s, IP 65, -20°C up to 70°C, duty: 75%, heater: 4 W, plastic housing (Nylon PA6), electronic torque limiting, optical position indicator, two limit switches for signal Open/Close, manual override

Article overview

Article no A16EL02 A16EL03 A16EL04 A16EL05 A16EL06 A16EL07 A16EL08 A16EL09 A16EL10 A16EL11
Nominal pressure [bar] 40 40 40 40 40 25 25 25 25 25
Overall length [mm] 65 65 65 75 86 95 101 120 165 188
Weight [kg] 1.1 1.1 1.1 1.2 1.5 2.2 2.45 3.35 6.3 8
Show Show Show Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
2-way
Connection method
Thread
Material
Brass
Actuation type
Electrically
Nominal width / Thread
1/2"
Approval
Without approval
Weight
1100 g
Overall length
65 mm
