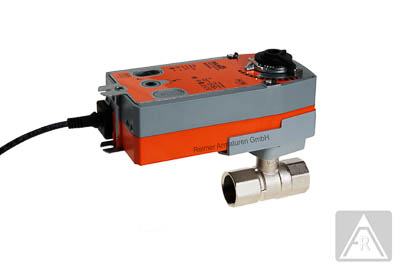

2-way ball valve - brass G 1 1/2", PN 16, female/female - electr. operated (230 V), operating time: 75 s, runnning time emergency setting position: < 20 s, IP 54 - spring return

2-way ball valve -brass -female/female -electr. operated (230 V) -spring-return

full bore, T= 0 up to 110°C (for fluids), T= -20 up to 60°C (for gas), threaded end connections acc. to ISO 228/1, body: brass-chrome plated, ball: brass-chrome plated, seats: PTFE, stem seals: FKMElectric actuator LRF230 - spring return electric actuator (90°), 230 V DC, IP 54, running time: 75 s, runnning time emergency setting position: < 20 s, plastic housing, 1 m cable ( 2 x 0, 75 mm2), service life: min. 60.000 emergency positions, ambient temperature: T= 0 bis +50°C, manual override, position indication, maintenance-freeDirection of rotation spring-return (selectable): Deenergised NC - valve closed, Deenergised NO - valve open
