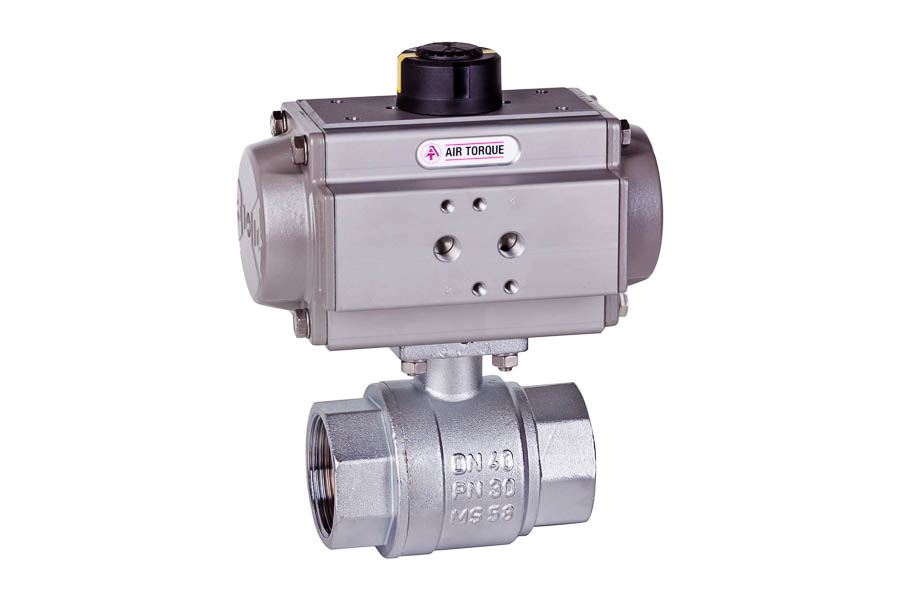

2-way ball valve - brass G 3", PN 25, female/female - pneumatically operated (double acting)

2-way ball valve - brass G 3", PN 25, female/female - pneumatically operated (double acting)

Article number: A16PD11

2-way ball valve -brass -female/female -ISO mounting pad

full bore, T= 0 up to 110°C (for fluids), T= -20 up to 60°C (for gas), threaded end connections acc. to ISO 228/1, body: brass-chrome plated, ball: brass-chrome plated, seats: PTFE, stem seals: FKMPneumatic actuator - double actingtype 1BRD030, control pressure: 6-8 bar (other control pressure on request), temperature: -20°C up to 80°C, media: clean air (ISO 8573-1:2001)

Article overview

Article no A16PD02 A16PD03 A16PD04 A16PD05 A16PD06 A16PD07 A16PD08 A16PD09 A16PD10 A16PD11
Nominal pressure [bar] 40 40 40 40 40 25 25 25 25 25
Overall length [mm] 65 65 65 75 86 95 101 120 165 188
Weight [kg] 1.435 1.415 1.38 1.51 1.8 2.05 2.8 3.7 6.6 8.3
Show Show Show Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
2-way
Connection method
Thread
Material
Brass
Actuation type
Pneumatically
Nominal width / Thread
3"
Approval
Without approval
Weight
8300 g
Overall length
188 mm

Accessories

Endschalterbox mit Mikroschalter- 24 V / 230 V

ZE1001

Endschalterbox mit Mikroschalter- 24 V / 230 V
Show
Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V

ZE1101

Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V
Show
Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V

ZE1201

Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 10...30 V DC, 5 m Kabel

ZE1301

Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 10...30 V DC, 5 m Kabel
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator IFM, 10...36 V DC, M12

ZE1401

Positionsrückmeldung AUF/ZU, Doppelinitiator IFM, 10...36 V DC, M12
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 5 m Kabel - ATEX

ZE1503

Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 5 m Kabel - ATEX
Show
Endschalterbox mit Mikroschalter- 24 V / 230 V - ATEX

ZE1611

Endschalterbox mit Mikroschalter- 24 V / 230 V - ATEX
Show
5/2- Wege Magnetventil, 24 V DC, G 1/4'', Namur-Lochbild

ZMA2101

5/2- Wege Magnetventil, 24 V DC, G 1/4'', Namur-Lochbild
Show
5/2- Wege Magnetventil, 230 V AC, G 1/4'', Namur-Lochbild

ZMA2204

5/2- Wege Magnetventil, 230 V AC, G 1/4'', Namur-Lochbild
Show
5/2- Wege Magnetventil, 24 V DC, G 1/4'', ATEX Anwendungen - Zone 1

ZMA2311

5/2- Wege Magnetventil, 24 V DC, G 1/4'', ATEX Anwendungen - Zone 1
Show
5/2- Wege Magnetventil, 230 V AC, G 1/4'', ATEX Anwendungen - Zone 1

ZMA2412

5/2- Wege Magnetventil, 230 V AC, G 1/4'', ATEX Anwendungen - Zone 1
Show
