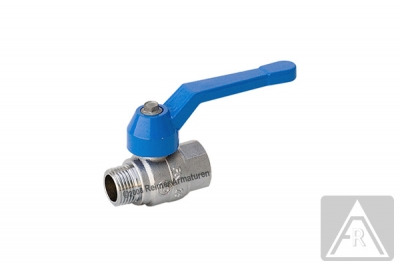

2-way ball valve - brass, full bore, G 1/4", PN 25, female/male - handlever: color blue (standard) or red

2-way ball valve - brass, full bore, G 1/4", PN 25, female/male - handlever: color blue (standard) or red

Article number: A2022

2-way ball valve -brass -female/male

full bore, T= -20 up to 120°C, threaded end connections acc. to ISO 228/1, body: brass-chrome plated, ball: brass-chrome plated, seats: PTFE, stem seals: FKM, handle: cast- aluminium, color: blue - on request: color red (r)

3.01 EUR
plus VAT., plus shipping costs

Article overview

Article no A2022 A2023 A2024 A2025 A2026 A2027 A2028 A2029
Nominal pressure [bar] 25 25 25 25 25 25 25 25
Overall length [mm] 44 45 54 65 73 85 96 110
Weight [kg] 0.09 0.11 0.21 0.31 0.46 0.62 1 1.45
Price EUR(1) 3.01 3.08 4.01 5.58 7.84 10.91 17.41 27.95
Show Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
2-way
Connection method
Thread
Material
Brass
Actuation type
Manually
Nominal width / Thread
1/4"
Approval
Without approval
Weight
90 g
Overall length
44 mm

Related articles

2-way ball valve - brass, full bore, G 3/8", PN 25, female/male - handlever: color blue (standard) or red

A2023

2-way ball valve - brass, full bore, G 3/8", PN 25, female/male - handlever: color blue (standard) or red
3.08 EUR (1)
Show
2-way ball valve - brass, full bore, G 1/2", PN 25, female/male - handlever: color blue (standard) or red

A2024

2-way ball valve - brass, full bore, G 1/2", PN 25, female/male - handlever: color blue (standard) or red
4.01 EUR (1)
Show
2-way ball valve - brass, full bore, G 3/4", PN 25, female/male - handlever: color blue (standard) or red

A2025

2-way ball valve - brass, full bore, G 3/4", PN 25, female/male - handlever: color blue (standard) or red
5.58 EUR (1)
Show
2-way ball valve - brass, full bore, G 1", PN 25, female/male - handlever: color blue (standard) or red

A2026

2-way ball valve - brass, full bore, G 1", PN 25, female/male - handlever: color blue (standard) or red
7.84 EUR (1)
Show
2-way ball valve - brass, full bore, G 1 1/4", PN 25, female/male - handlever: color blue (standard) or red

A2027

2-way ball valve - brass, full bore, G 1 1/4", PN 25, female/male - handlever: color blue (standard) or red
10.91 EUR (1)
Show
2-way ball valve - brass, full bore, G 1 1/2", PN 25, female/male - handlever: color blue (standard) or red

A2028

2-way ball valve - brass, full bore, G 1 1/2", PN 25, female/male - handlever: color blue (standard) or red
17.41 EUR (1)
Show
2-way ball valve - brass, full bore, G 2", PN 25, female/male - handlever: color blue (standard) or red

A2029

2-way ball valve - brass, full bore, G 2", PN 25, female/male - handlever: color blue (standard) or red
27.95 EUR (1)
Show

(1)All prices are in EURO plus the current legally valid value added tax.
*Only for companies, tradesmen, associations, craft businesses, public authorities or self-employed freelancers within the meaning of § 14 BGB.
