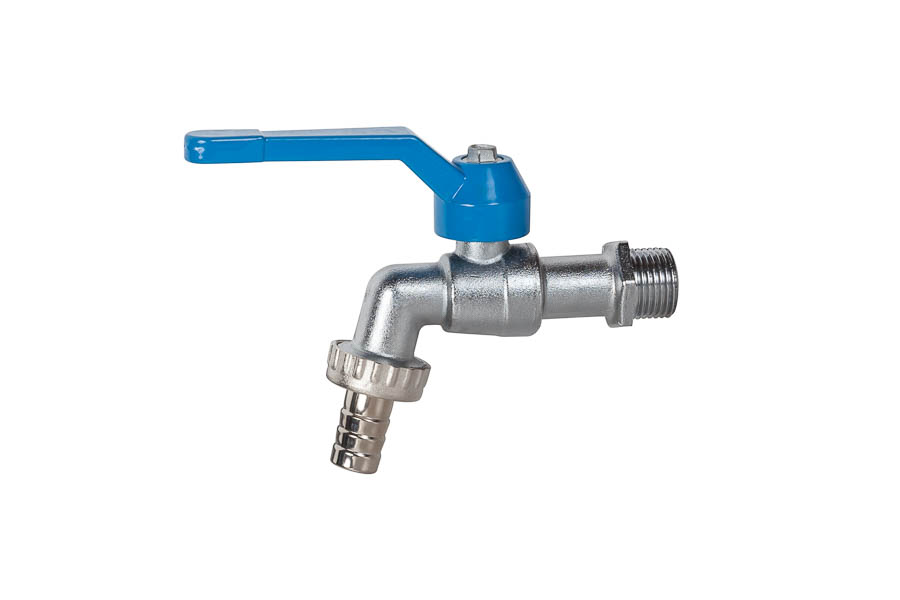

2-way ball valve - brass G 3/8", PN 16, with hose union
Article number: A6053
2-way ball valve -brass -with hose union
T= 0 up to 110°C (for fluids), threaded end connection acc. to ISO 228/1, for hose: d=14 mm (3/8"+1/2"), d=20 mm (3/4"), d=25 mm (1"), body: brass-chrome plated, ball: brass-chrome plated, seats: PTFE, stem seals: FKM, handle: cast- aluminium (color: blue) - on request: color red (r)
Article overview
Technical information
Product group
Ball valves
Design
2-way
Connection method
Thread
Material
Brass
Actuation type
Manually
Nominal width / Thread
3/8"
Approval
Without approval
Weight
175 g
Overall length
80 mm
