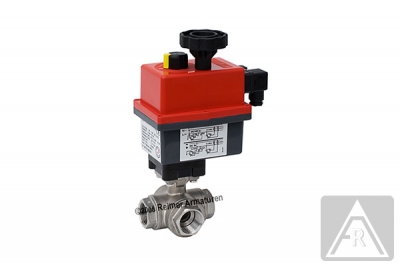

3-way ball valve - brass G 1/4", PN 16, L-bore - electrically operated (24 V)
Article number: A74ELL02
3-way ball valve -brass with L-bore
L-bore, T= -20 up to 120°C, sealed on all parts, not crossoverfree, threaded end connectionsacc. to ISO 228/1, body: brass-chrome plated, ball: brass-chrome plated, seats: PTFE/FKM, stem seals: FKMElectric actuator 1AL020 - 24 V AC/DCwith 90° rotation, torque: 20 Nm/25 Nm, 12-24 V AC/DC, operating time: 17s, IP 67, -20°C up to 70°C, duty: 75%, min/max. current: 0, 18 A - 2, 14 A, heater: 4 W, plastic housing (Nylon PA6), electronic torque limiting, optical position indicator, two limit switches for signal Open/Close, manual override
Article overview
Technical information
Product group
Ball valves
Design
3-way
Connection method
Thread
Material
Brass
Actuation type
Electrically
Nominal width / Thread
1/4"
Approval
Without approval
Weight
1670 g
Overall length
65 mm
