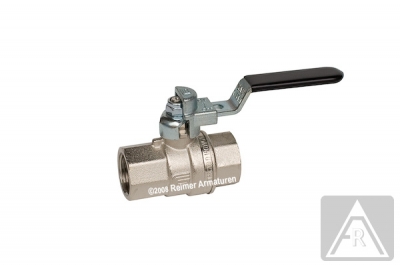

2-way ball valve - brass Rp 2", PN 40, female/female, lockable
Article number: B051109
2-way ball valves -brass -female/female -lockable
full bore, T= -15 up to 120°C (for fluids), threaded end connections acc. to ISO 7/1, body: brass-nickel plated, ball: brass-chrome plated, seats: PTFE, stem seal: PTFE+NBR, handle: steel-zinc plated
Article overview
| Article no | B051103 | B051104 | B051105 | B051106 | B051107 | B051108 | B051109 | B051110 | B051111 | B051112 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal pressure [bar] | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Overall length [mm] | 53 | 61 | 70 | 84 | 98 | 108 | 130 | 159 | 182 | 219 |
| Weight [kg] | 0.25 | 0.37 | 0.6 | 0.9 | 1.6 | 2.3 | 3.6 | 5.6 | 8.5 | 14 |
| Show | Show | Show | Show | Show | Show | Show | Show | Show | Show |
Technical information
Product group
Ball valves
Design
2-way
Connection method
Thread
Material
Brass
Actuation type
Manually
Nominal width / Thread
2"
Approval
Without approval
Weight
3600 g
Overall length
130 mm
