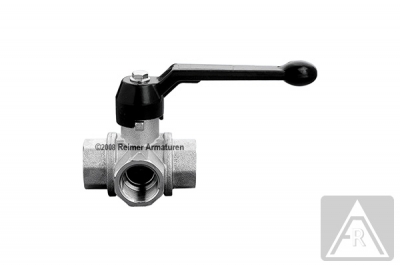

3- way ball valve - brass Rp 1", PN 10, L-bore

3- way ball valve - brass Rp 1", PN 10, L-bore

Article number: B115006

3-way ball valve -brass with L-bore

full bore, T= -10 up to 100°C, threaded end connections acc. to ISO 7/1, body: brass-nickel plated, ball: brass-chrome plated, seats: PTFE, stem seals: PTFE, handle: cast- aluminium (color black)Please note the flow direction !

Article overview

Article no B115002 B115003 B115004 B115005 B115006 B115007 B115008 B115009
Nominal pressure [bar] 10 10 10 10 10 10 10 10
Overall length [mm] 52 55 69 77 89 103 114 134
Weight [kg] 0.295 0.27 0.41 0.68 1 1.74 2.49 4.02
Show Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
3-way
Connection method
Thread
Material
Brass
Actuation type
Manually
Nominal width / Thread
1"
Approval
Without approval
Weight
1000 g
Overall length
89 mm
