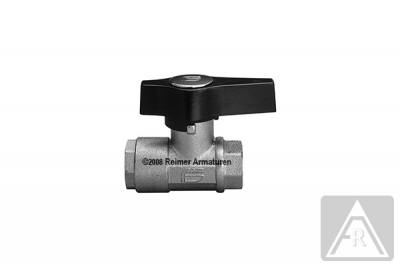

2-way ball valve - brass Rp 3/8", female/female, up to PN 210

2-way ball valve - brass  Rp 3/8", female/female, up to PN 210

Article number: B232103

2-way ball valves -brass -female/female -up to PN 210

reduce bore, T= -10 up to 80°C, threaded end connections acc. to ISO 7/1, body: brass-nickel plated, ball: brass-chrome plated, seats: Delrin, stem seal: FKM, handle: cast- aluminium (color black)

23.41 EUR
plus VAT., plus shipping costs

Article overview

Article no B232103 B232104 B232105 B232106
Nominal pressure [bar] 210 210 210 210
Overall length [mm] 75 85 95 105
Weight [kg] 0.482 0.637 1.179 1.536
Price EUR(1) 23.41 27.12 41.17 55.28
Show Show Show Show

Technical information

Product group
Ball valves
Design
2-way
Connection method
Thread
Material
Brass
Actuation type
Manually
Nominal width / Thread
3/8"
Approval
Without approval
Weight
482 g
Overall length
75 mm

Related articles

2-way ball valve - brass  Rp 1/2", female/female, up to PN 210

B232104

2-way ball valve - brass Rp 1/2", female/female, up to PN 210
27.12 EUR (1)
Show
2-way ball valve - brass  Rp 3/4", female/female, up to PN 210

B232105

2-way ball valve - brass Rp 3/4", female/female, up to PN 210
41.17 EUR (1)
Show
2-way ball valve - brass  Rp 1", female/female, up to PN 210

B232106

2-way ball valve - brass Rp 1", female/female, up to PN 210
55.28 EUR (1)
Show

(1)All prices are in EURO plus the current legally valid value added tax.
*Only for companies, tradesmen, associations, craft businesses, public authorities or self-employed freelancers within the meaning of § 14 BGB.
