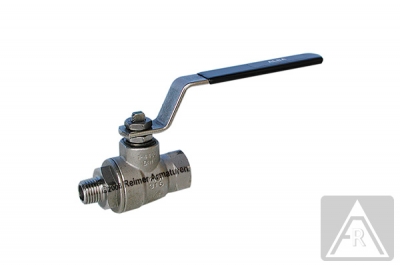

2-way ball valve - stainless steel, Rp/R 3/8", PN 100, female/male - with DVGW approval for gases (MOP5)
Article number: B260203
2-way ball valves -stainless steel -female/male
full bore, 2- piece design, T= -20 up to 150°C, threaded end connections acc. to ISO 7/1, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: PTFE, stem seal: PTFE+Viton, handlever: stainless steel, approvals: DVGW- approval for gases acc. to G260 and G262 up to 5 bar (MOP 5), TA Luft
Article overview
Technical information
Product group
Ball valves
Design
2-way
Connection method
Thread
Material
Stainless steel
Actuation type
Manually
Nominal width / Thread
3/8"
Weight
230 g
Overall length
55 mm
