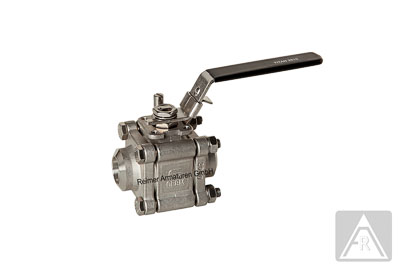

2-way ball valve - stainless steel, DN 50, PN 100, butt weld

Article number: B281009

2-way ball valves -stainless steel -butt weld

full bore, 3- piece design, T= -20 up to 150°C, butt weld ANSI B16.25, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: PTFE, stem seal: PTFE, handlever: stainless steel

Article overview

Article no	B281002	B281003	B281004	B281005	B281006	B281007	B281008	B281009
Nominal pressure [bar]	140	140	140	140	140	100	100	100
Overall length [mm]	60	60	75	80	90	110	120	140
Weight [kg]	0.63	0.63	0.86	1.45	2.81	3.81	5.08	6.58
	Show	Show	Show	Show	Show	Show	Show	Show

Technical information

Product group

Ball valves

Design

2-way

Connection method

Buttweld

Material

Stainless steel

Actuation type

Manually

Nominal width / Thread

DN 50

Approval

Without approval

Weight

6580 g

Overall length

140 mm

B281002

2-way ball valve - stainless steel, DN 8, PN 140, butt weld

Show

B281003

2-way ball valve - stainless steel, DN 10, PN 140, butt weld

Show

B281004

2-way ball valve - stainless steel, DN 15, PN 140, butt weld

Show

B281005

2-way ball valve - stainless steel, DN 20, PN 140, butt weld

Show

B281006

2-way ball valve - stainless steel, DN 25, PN 140, butt weld

Show

B281007

2-way ball valve - stainless steel, DN 32, PN 100, butt weld

Show

B281008

2-way ball valve - stainless steel, DN 40, PN 100, butt weld

Show
