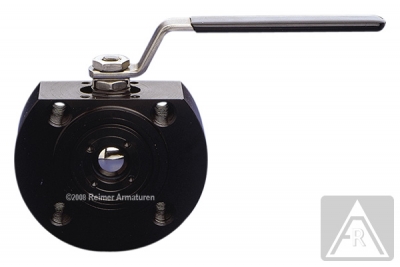

2-way wafer-type ball valve - steel, DN 100, PN 16 - for steam

2-way wafer-type ball valve - steel, DN 100, PN 16 - for steam

Article number: B288712

2-way ball valves -wafer type -steel -for steam

full bore, T= -20 up to 210°C, flanges with threaded holes (metric) , body: 1.0570, ball: stainless steel-1.4301, seats: PTFE+Carbographite, stem seals: PTFE+FKM, handlever: steel-galv., approvals: DVGW- approval for gases up to PN 16 acc. to G260, TA- Luft, Fire-Safe

Data sheet B2887

Article overview

Article no B288704 B288705 B288706 B288707 B288708 B288709 B288710 B288711 B288712
Nominal pressure [bar] 16 16 16 16 16 16 16 16 16
Overall length [mm] 35 38 43 54 60 70 95 122 140
Weight [kg] 1.345 1.81 2.505 3.995 5.54 7.3 15 19.5 31.5
Show Show Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
2-way
Connection method
Wafer type
Material
Steel
Actuation type
Manually
Nominal width / Thread
DN 100
Weight
31500 g
Overall length
140 mm
