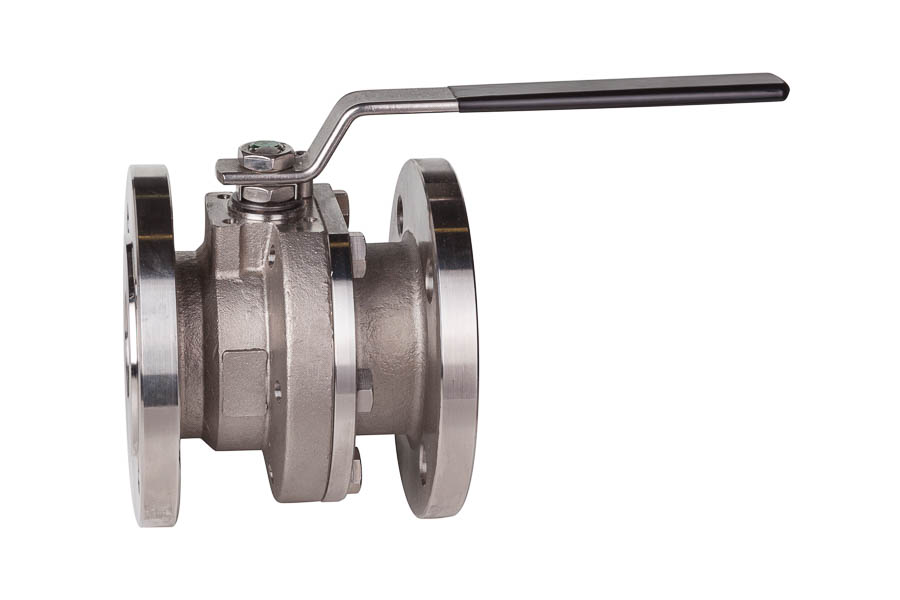

2-way Flange ball valve - stainless steel, DN 50, PN 40 - DVGW/TA Luft/Fire safe
Article number: B292209
2-way ball valve -flange type -stainless steel
split body, full bore, T= -20 up to 180°C, face to face acc. to EN 558-1 row 27, body: stainless steel-1.4401/1.4408, ball: stainless steel-1.4408, seats: PTFE, stem seals: PTFE+FKM, handlever: stainless steel, approvals: DVGW- approval for gases up to PN 16 acc. to G260 and G262, TA- Luft, Fire-Safe
Article overview
Technical information
Product group
Ball valves
Design
2-way
Connection method
Flange type
Material
Stainless steel
Actuation type
Manually
Nominal width / Thread
DN 50
Weight
13755 g
Overall length
150 mm
