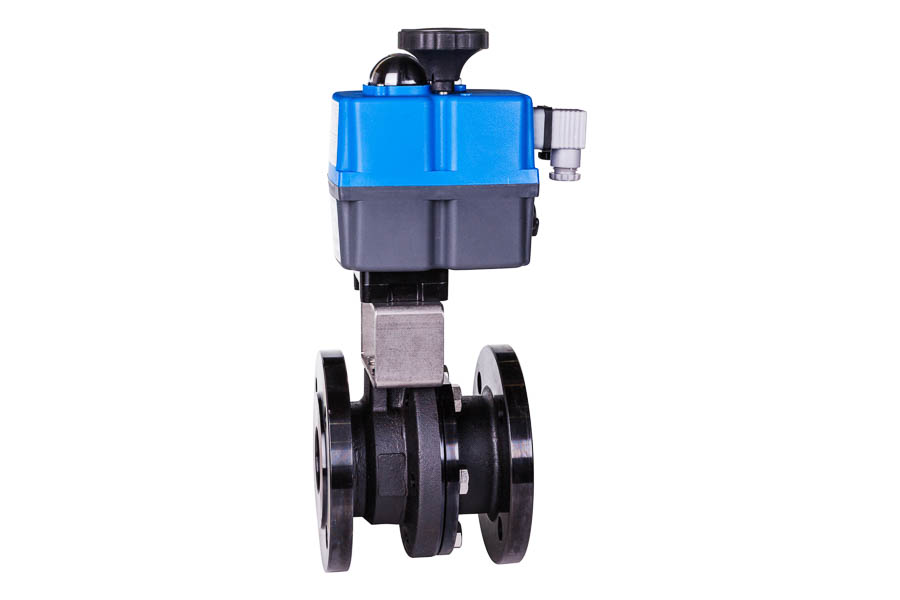

2-way Flange ball valve - steel, DN 20, PN 40 - electrically operated (230 V)
Article number: B2932EH05
2-way ball valve -flange type -steel
split body, full bore, T= -20 up to 180°C, face to face acc. to EN 558-1 row 27, body: A105 or 1.0570, ball: stainless steel-1.4301, seats: PTFE, stem seals: PTFE+FKMapprovals: DVGW- approval for gases up to PN 16 acc. to G260, TA- Luft, Fire-SafeElectric actuator 1AH020 - 230 V AC/DCwith 90° rotation, torque: 20 Nm/25 Nm, 85-240 V AC/DC, operating time: 11s, IP 67, -20°C up to 70°C, duty: 75%, min/max. current: 0, 01 A - 0, 21 A, heater: 4 W, plastic housing (Nylon PA6), electronic torque limiting, optical position indicator, two limit switches for signal Open/Close, manual override
Article overview
| Article no | B2932EH04 | B2932EH05 | B2932EH06 | B2932EH07 | B2932EH08 | B2932EH09 | B2932EH10 | B2932EH11 | B2932EH12 |
|---|---|---|---|---|---|---|---|---|---|
| Nominal pressure [bar] | 40 | 40 | 40 | 40 | 40 | 40 | 16 | 16 | 16 |
| Overall length [mm] | 115 | 120 | 125 | 130 | 140 | 150 | 170 | 180 | 190 |
| Weight [kg] | 5.4 | 6.435 | 7.45 | 10.02 | 13.56 | 17.3 | 26.75 | 33.53 | 40.81 |
| Show | Show | Show | Show | Show | Show | Show | Show | Show |
Technical information
Product group
Ball valves
Design
2-way
Connection method
Flange type
Material
Steel
Actuation type
Electrically
Nominal width / Thread
DN 20
Weight
6435 g
Overall length
120 mm
