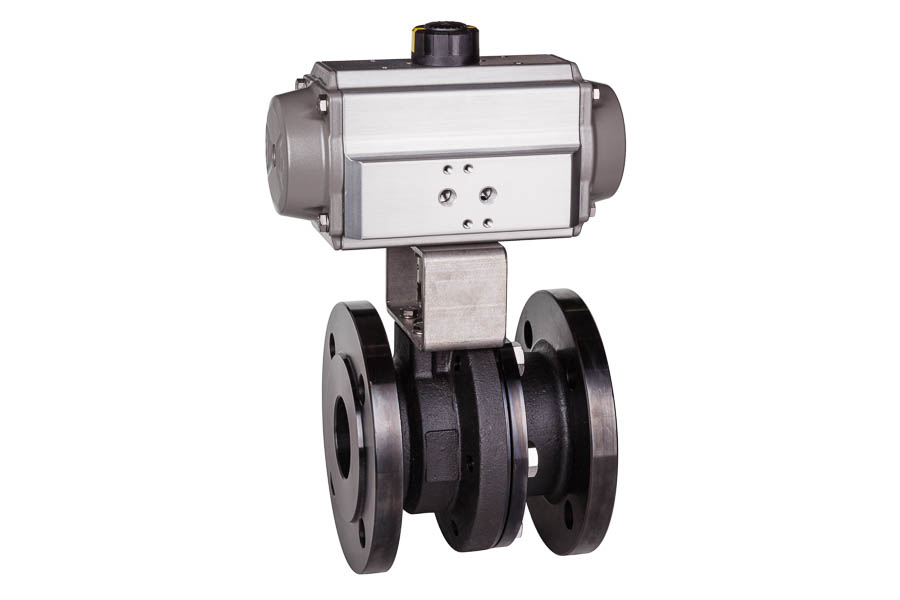

2-way Flange ball valve - steel, DN 65, PN 16 - pneumatically operated (single acting)
Article number: B2932PE10
2-way ball valve -flange type -steel
split body, full bore, T= -20 up to 180°C, face to face acc. to EN 558-1 row 27, body: A105 or 1.0570, ball: stainless steel-1.4301, seats: PTFE, stem seals: PTFE+FKM, approvals: DVGW- approval for gases up to PN 16 acc. to G260, TA- Luft, Fire-SafePneumatic actuator - single actingType 1BRE220, control pressure: 6-8 bar (other control pressure on request), temperature: -20°C up to 80°C, media: clean air (ISO 8573-1:2001), function: spring close (on request: spring open)
Article overview
Article no | B2932PE04 | B2932PE05 | B2932PE06 | B2932PE07 | B2932PE08 | B2932PE09 | B2932PE10 |
---|---|---|---|---|---|---|---|
Nominal pressure [bar] | 40 | 40 | 40 | 40 | 40 | 40 | 16 |
Overall length [mm] | 115 | 120 | 125 | 130 | 140 | 150 | 170 |
Weight [kg] | 4.8 | 6.435 | 8.85 | 12.62 | 15.46 | 21 | 33.05 |
Price EUR(1) | 277.13 | 321.90 | 387.85 | 453.38 | 511.40 | 579.98 | 871.87 |
Show | Show | Show | Show | Show | Show | Show |
