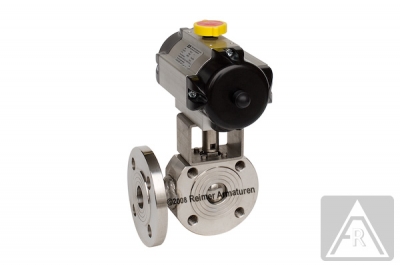

3-way wafer-type ball valve - stainless steel, DN 32, PN 16, T-bored - pneumatically operated (double acting)

3-way wafer-type ball valve - stainless steel, DN 32, PN 16, T-bored - pneumatically operated (double acting)

Article number: BNAPDT07

3-way ball valve -wafer type -stainless steel

T-bored, reduced bore, T= -20 up to 180°C, body with threaded holes (metric) , body: stainless steel-1.4401/1.4408, ball: stainless steel-1.4408, seats: PTFE, stem seals: PTFE+FKMPlease note the flow direction !Pneumatic actuator - double actingtype 1BRD030, control pressure: 6-8 bar (other control pressure on request), temperature: -20°C up to 80°C, media: clean air (ISO 8573-1:2001)

Article overview

Article no BNAPDT04 BNAPDT05 BNAPDT06 BNAPDT07 BNAPDT08 BNAPDT09 BNAPDT10 BNAPDT11 BNAPDT12
Nominal pressure [bar] 40 40 40 40 40 40 16 16 16
Overall length [mm] 35 38 43 54 66 83 103 122 153
Weight [kg] 3.24 3.992 4.79 7.725 9.685 13.88 22.17 28.78 46.56
Show Show Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
3-way
Connection method
Wafer type
Material
Stainless steel
Actuation type
Pneumatically
Nominal width / Thread
DN 32
Approval
Without approval
Weight
7725 g
Overall length
54 mm
