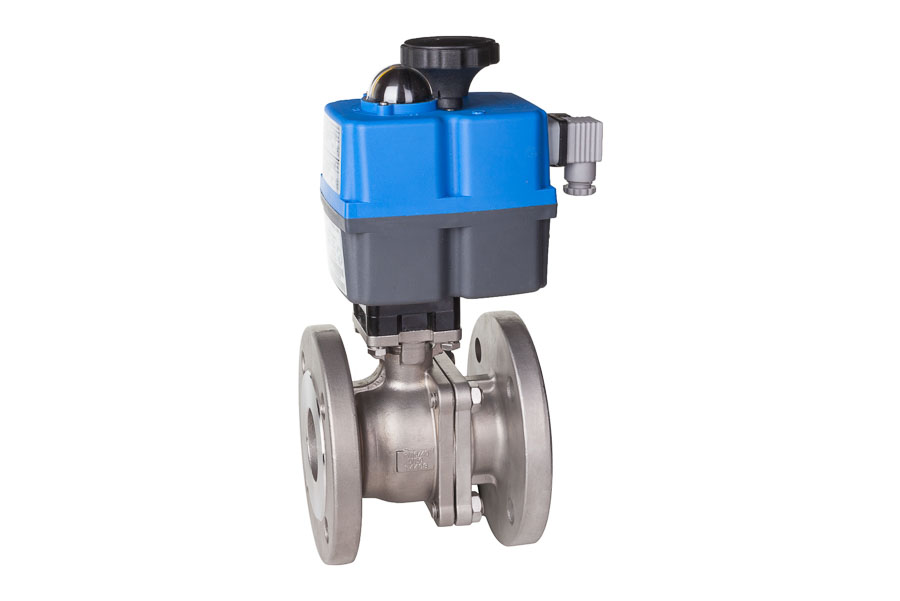

2-way Flange ball valve - stainless steel, DN 15, PN 16 - electrically operated (230 V)
Article number: D028EH04
2-way ball valve -flange type -stainless steel
split body, full bore, T= -20 up to 180°C, face to face acc. to EN 558-1 row 27, with mounting pad acc. to DIN ISO 5211, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: RTFE, stem seals: PTFE+VitonElectric actuator 1AH020 - 230 V AC/DCwith 90° rotation, torque: 20 Nm/25 Nm, 85-240 V AC/DC, operating time: 11s, IP 67, -20°C up to 70°C, duty: 75%, min/max. current: 0, 01 A - 0, 21 A, heater: 4 W, plastic housing (Nylon PA6), electronic torque limiting, optical position indicator, two limit switches for signal Open/Close, manual override
Article overview
| Article no | D028EH04 | D028EH05 | D028EH06 | D028EH07 | D028EH08 | D028EH09 | D028EH10 | D028EH11 | D028EH12 |
|---|---|---|---|---|---|---|---|---|---|
| Nominal pressure [bar] | 40 | 40 | 40 | 40 | 40 | 40 | 16 | 16 | 16 |
| Overall length [mm] | 115 | 120 | 125 | 130 | 140 | 150 | 170 | 180 | 190 |
| Weight [kg] | 4 | 4.6 | 5.4 | 6.7 | 8.4 | 11.6 | 17.2 | 21 | 28.25 |
| Price EUR(1) | 350.97 | 377.29 | 397.88 | 481.26 | 534.67 | 738.10 | 1107.90 | 1184.52 | 1424.74 |
| Show | Show | Show | Show | Show | Show | Show | Show | Show |
Technical information
