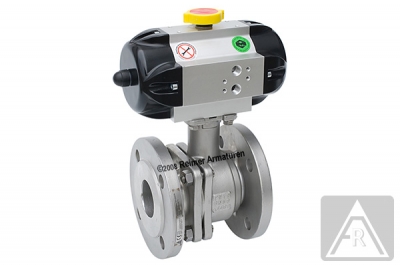

2-way Flange ball valve - stainless steel, DN 65, PN 16 - pneumatically operated (double acting)

2-way Flange ball valve - stainless steel, DN 65, PN 16 - pneumatically operated (double acting)

Article number: D028PD10

2-way ball valve -flange type -stainless steel

split body, full bore, T= -20 up to 180°C, face to face acc. to EN 558-1 row 27, with mounting pad acc. to DIN ISO 5211, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: RTFE, stem seals: PTFE+VitonPneumatic actuator - double actingTyp 1BRD100, control pressure: 6-8 bar (other control pressure on request), temperature: -20°C up to 80°C, media: clean air (ISO 8573-1:2001)

Article overview

Article no D028PD04 D028PD05 D028PD06 D028PD07 D028PD08 D028PD09 D028PD10 D028PD11 D028PD12
Nominal pressure [bar] 40 40 40 40 40 40 16 16 16
Overall length [mm] 115 120 125 130 140 150 170 180 190
Weight [kg] 3.3 3.9 4.7 6.6 8.3 11.9 15.9 19.7 31
Show Show Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
2-way
Connection method
Flange type
Material
Stainless steel
Actuation type
Pneumatically
Nominal width / Thread
DN 65
Weight
15900 g
Overall length
170 mm

Accessories

Endschalterbox mit Mikroschalter- 24 V / 230 V

ZE1001

Endschalterbox mit Mikroschalter- 24 V / 230 V
Show
Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V

ZE1101

Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V
Show
Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V

ZE1201

Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 10...30 V DC, 5 m Kabel

ZE1301

Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 10...30 V DC, 5 m Kabel
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator IFM, 10...36 V DC, M12

ZE1401

Positionsrückmeldung AUF/ZU, Doppelinitiator IFM, 10...36 V DC, M12
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 5 m Kabel - ATEX

ZE1503

Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 5 m Kabel - ATEX
Show
Endschalterbox mit Mikroschalter- 24 V / 230 V - ATEX

ZE1611

Endschalterbox mit Mikroschalter- 24 V / 230 V - ATEX
Show
5/2- Wege Magnetventil, 24 V DC, G 1/4'', Namur-Lochbild

ZMA2101

5/2- Wege Magnetventil, 24 V DC, G 1/4'', Namur-Lochbild
Show
5/2- Wege Magnetventil, 230 V AC, G 1/4'', Namur-Lochbild

ZMA2204

5/2- Wege Magnetventil, 230 V AC, G 1/4'', Namur-Lochbild
Show
5/2- Wege Magnetventil, 24 V DC, G 1/4'', ATEX Anwendungen - Zone 1

ZMA2311

5/2- Wege Magnetventil, 24 V DC, G 1/4'', ATEX Anwendungen - Zone 1
Show
5/2- Wege Magnetventil, 230 V AC, G 1/4'', ATEX Anwendungen - Zone 1

ZMA2412

5/2- Wege Magnetventil, 230 V AC, G 1/4'', ATEX Anwendungen - Zone 1
Show
