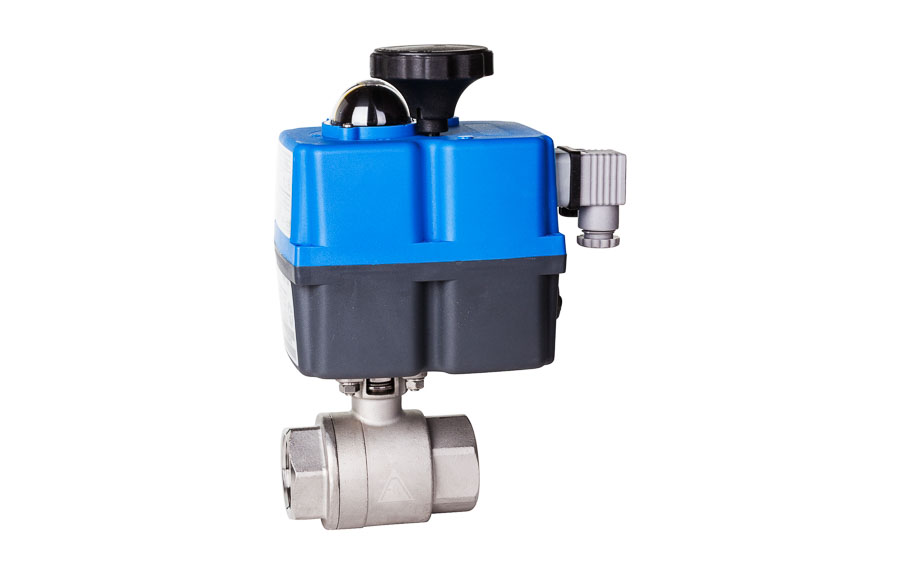

2-way ball valve - stainless steel, Rp 1 1/2", PN 40, female/female - electrically operated (230 V)
Article number: D0368EH08
2-way ball valves -stainless steel -female/female
full bore, 2- piece design, T= -20 up to 180°C, threaded end connections acc. to DIN 2999, with mounting pad acc. to DIN ISO 5211, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: PTFE, stem seal: PTFE+VitonElectric actuator 1AH035 - 230 V AC/DCwith 90° rotation, torque: 35 Nm/ 38 Nm, 85-240 V AC/DC, operating time: 11s, IP 67, -20°C up to 70°C, duty: 75%, min/max. current: 0, 01 A - 0, 24 A, heater: 4 W, plastic housing (Nylon PA6), electronic torque limiting, optical position indicator, two limit switches for signal Open/Close, manual override
Article overview
| Article no | D0368EH02 | D0368EH03 | D0368EH04 | D0368EH05 | D0368EH06 | D0368EH07 | D0368EH08 | D0368EH09 |
|---|---|---|---|---|---|---|---|---|
| Nominal pressure [bar] | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
| Overall length [mm] | 65 | 65 | 65 | 0 | 88 | 102 | 110 | 125 |
| Weight [kg] | 1.28 | 1.28 | 1.21 | 1.35 | 2.89 | 3.3 | 4.5 | 6.01 |
| Price EUR(1) | 216.82 | 216.82 | 216.82 | 217.00 | 304.84 | 341.19 | 421.78 | 554.03 |
| Show | Show | Show | Show | Show | Show | Show | Show |
Technical information
