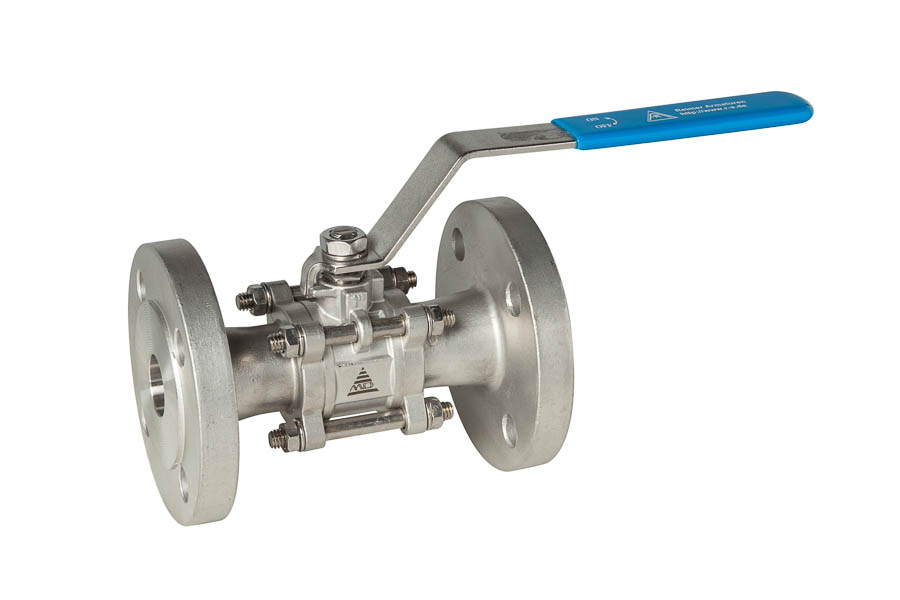

2-way Flange ball valve - stainless steel, DN 15, PN 40

Article number: D205F04

2-way ball valve -flange type -stainless steel

3- piece design, full bore, T= -20 up to 180°C, face to face acc. to EN 558-1 Reihe 1, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: PTFE+15%gf, stem seal: PTFE, handlever: stainless steel

82.78 EUR
plus VAT., plus shipping costs

Data sheet D205F

Article overview

Article no	D205F04	D205F05	D205F06	D205F07	D205F08	D205F09
Nominal pressure [bar]	40	40	40	40	40	40
Overall length [mm]	130	150	160	180	200	230
Weight [kg]	2.3	3.4	4	6.4	8.1	11.2
Price EUR⁽¹⁾	82.78	102.09	129.62	191.18	232.85	312.61
	Show	Show	Show	Show	Show	Show

Technical information

Product group

Ball valves

Design

2-way

Connection method

Flange type

Material

Stainless steel

Actuation type

Manually

Nominal width / Thread

DN 15

Approval

Without approval

Weight

2300 g

Overall length

130 mm

D205F05

2-way Flange ball valve - stainless steel, DN 20, PN 40

102.09 EUR ⁽¹⁾

Show

D205F06

2-way Flange ball valve - stainless steel, DN 25, PN 40

129.62 EUR ⁽¹⁾

Show

D205F07

2-way Flange ball valve - stainless steel, DN 32, PN 40

191.18 EUR ⁽¹⁾

Show

D205F08

2-way Flange ball valve - stainless steel, DN 40, PN 40

232.85 EUR ⁽¹⁾

Show

D205F09

2-way Flange ball valve - stainless steel, DN 50, PN 40

312.61 EUR ⁽¹⁾

Show
