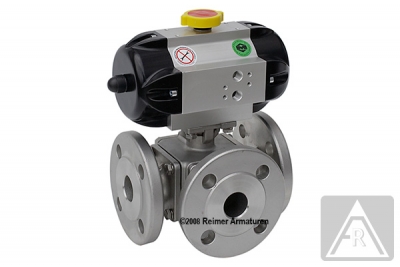

3-way ball valve - stainless steel, DN 40, PN 16, T-bored - pneumatically operated (double acting)
Article number: D314PDT08
3-way ball valve -stainless steel with T-bore
full bore, T= -20 up to 180°C, sealed on all ports, not overcutting free, mounting flange acc. to DIN ISO 5211, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: PTFE, stem seal: PTFE+VitonPneumatic actuator - double actingTyp 1BRD100, control pressure: 6-8 bar (other control pressure on request), temperature: -20°C up to 80°C, media: clean air (ISO 8573-1:2001)
Article overview
Technical information
Product group
Ball valves
Design
3-way
Connection method
Flange type
Material
Stainless steel
Actuation type
Pneumatically
Nominal width / Thread
DN 40
Weight
13210 g
