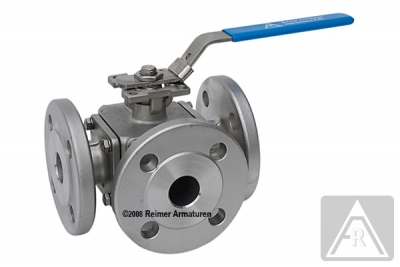

3-way ball valve - stainless steel, DN 25, PN 16, T-bore

Article number: D314T06

3-way ball valve -stainless steel with T-bore

full bore, T= -20 up to 180°C, sealed on all ports, not overcutting free, mounting flange acc. to DIN ISO 5211, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: PTFE, stem seal: PTFE+Viton, handlever: stainless steel (lockable)

Data sheet D314T

Article overview

Article no	D314T04	D314T05	D314T06	D314T07	D314T08	D314T09	D314T10	D314T11
Nominal pressure [bar]	16	16	16	16	16	16	16	16
Overall length [mm]	158	169	185	195	232	253	270	0
Weight [kg]	2.77	3.97	4.61	7.57	9.51	12.85	23.8	35
	Show	Show	Show	Show	Show	Show	Show	Show

Technical information

Product group

Ball valves

Design

3-way

Connection method

Flange type

Material

Stainless steel

Actuation type

Manually

Nominal width / Thread

DN 25

Weight

4610 g

Overall length

185 mm

D314T04

3-way ball valve - stainless steel, DN 15, PN 16, T-bore

Show

D314T05

3-way ball valve - stainless steel, DN 20, PN 16, T-bore

Show

D314T07

3-way ball valve - stainless steel, DN 32, PN 16, T-bore

Show

D314T08

3-way ball valve - stainless steel, DN 40, PN 16, T-bore

Show

D314T09

3-way ball valve - stainless steel, DN 50, PN 16, T-bore

Show

D314T10

3-way ball valve - stainless steel, DN 65, PN 16, T-bore

Show

D314T11

3-way ball valve - stainless steel, DN 80, PN 16, T-bore

Show
