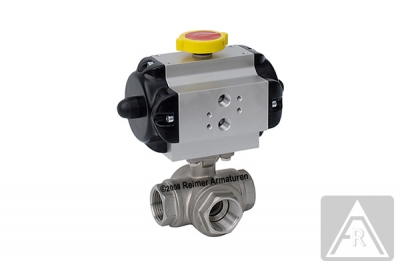

3-way ball valve - stainless steel, Rp 1/4", PN 40, T-bored - pneumatically operated (double acting)

3-way ball valve - stainless steel, Rp 1/4", PN 40, T-bored - pneumatically operated (double acting)

Article number: D318PDT02

3-way ball valve -stainless steel with T-bore

reduce bore, T= -20 up to 180°C, sealed on all ports, not overcutting free, threaded connectionacc. to DIN 2999, with mounting pad acc. to DIN ISO 5211, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: PTFE+15%gf, stem seal: PTFE+VitonPneumatic actuator - double actingtypr 1BRD015, control pressure: 6-8 bar (other control pressure on request), temperature: -20°C up to 80°C, media: clean air (ISO 8573-1:2001)

Article overview

Article no D318PDT02 D318PDT03 D318PDT04 D318PDT05 D318PDT06 D318PDT07 D318PDT08 D318PDT09
Nominal pressure [bar] 40 40 40 40 40 40 40 40
Overall length [mm] 0 0 0 0 0 0 0 149
Weight [kg] 1.85 1.85 1.85 2.67 3.28 5.14 6.31 11.01
Show Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
3-way
Connection method
Thread
Material
Stainless steel
Actuation type
Pneumatically
Nominal width / Thread
1/4"
Approval
Without approval
Weight
1850 g

Accessories

Endschalterbox mit Mikroschalter- 24 V / 230 V

ZE1001

Endschalterbox mit Mikroschalter- 24 V / 230 V
Show
Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V

ZE1101

Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V
Show
Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V

ZE1201

Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 10...30 V DC, 5 m Kabel

ZE1301

Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 10...30 V DC, 5 m Kabel
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator IFM, 10...36 V DC, M12

ZE1401

Positionsrückmeldung AUF/ZU, Doppelinitiator IFM, 10...36 V DC, M12
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 5 m Kabel - ATEX

ZE1503

Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 5 m Kabel - ATEX
Show
Endschalterbox mit Mikroschalter- 24 V / 230 V - ATEX

ZE1611

Endschalterbox mit Mikroschalter- 24 V / 230 V - ATEX
Show
5/2- Wege Magnetventil, 24 V DC, G 1/4'', Namur-Lochbild

ZMA2101

5/2- Wege Magnetventil, 24 V DC, G 1/4'', Namur-Lochbild
Show
5/2- Wege Magnetventil, 230 V AC, G 1/4'', Namur-Lochbild

ZMA2204

5/2- Wege Magnetventil, 230 V AC, G 1/4'', Namur-Lochbild
Show
5/2- Wege Magnetventil, 24 V DC, G 1/4'', ATEX Anwendungen - Zone 1

ZMA2311

5/2- Wege Magnetventil, 24 V DC, G 1/4'', ATEX Anwendungen - Zone 1
Show
5/2- Wege Magnetventil, 230 V AC, G 1/4'', ATEX Anwendungen - Zone 1

ZMA2412

5/2- Wege Magnetventil, 230 V AC, G 1/4'', ATEX Anwendungen - Zone 1
Show
