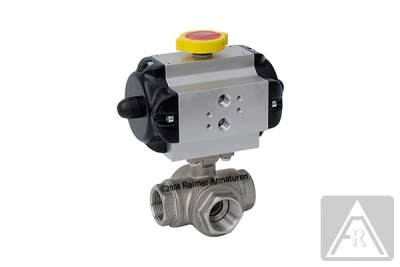

3-way ball valve - stainless steel, Rp 1/4", PN 40, L-bored - pneumatically operated (single acting)

3-way ball valve - stainless steel, Rp 1/4", PN 40, L-bored - pneumatically operated (single acting)

Article number: D318PEL02

3-way ball valve -stainless steel with L-bore

reduce bore, T= -20 up to 180°C, sealed on all ports, not overcutting free, threaded connectionacc. to DIN 2999, with mounting pad acc. to DIN ISO 5211, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: PTFE+15%gf, stem seal: PTFE+VitonPneumatic actuator - single actingType 1BRE030, control pressure: 6-8 bar (other control pressure on request), temperature: -20°C up to 80°C, media: clean air (ISO 8573-1:2001), function: spring close (on request: spring open)

Article overview

Article no D318PEL02 D318PEL03 D318PEL04 D318PEL05 D318PEL06 D318PEL07 D318PEL08 D318PEL09
Nominal pressure [bar] 40 40 40 40 40 40 40 40
Overall length [mm] 0 0 0 0 0 0 0 149
Weight [kg] 2.55 2.55 2.55 4.17 5.98 8.54 9.71 17.81
Show Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
3-way
Connection method
Thread
Material
Stainless steel
Actuation type
Pneumatically
Nominal width / Thread
1/4"
Approval
Without approval
Weight
2550 g

Accessories

Endschalterbox mit Mikroschalter- 24 V / 230 V

ZE1001

Endschalterbox mit Mikroschalter- 24 V / 230 V
Show
Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V

ZE1101

Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V
Show
Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V

ZE1201

Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 10...30 V DC, 5 m Kabel

ZE1301

Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 10...30 V DC, 5 m Kabel
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator IFM, 10...36 V DC, M12

ZE1401

Positionsrückmeldung AUF/ZU, Doppelinitiator IFM, 10...36 V DC, M12
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 5 m Kabel - ATEX

ZE1503

Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 5 m Kabel - ATEX
Show
Endschalterbox mit Mikroschalter- 24 V / 230 V - ATEX

ZE1611

Endschalterbox mit Mikroschalter- 24 V / 230 V - ATEX
Show
3/2- Wege Magnetventil, 24 V DC, G 1/4'', Namur-Lochbild

ZMA1101

3/2- Wege Magnetventil, 24 V DC, G 1/4'', Namur-Lochbild
Show
3/2- Wege Magnetventil, 230 V AC, G 1/4'', Namur-Lochbild

ZMA1204

3/2- Wege Magnetventil, 230 V AC, G 1/4'', Namur-Lochbild
Show
3/2- Wege Magnetventil, 24 V DC, G 1/4'' - ATEX Anwendungen - Zone 1

ZMA1311

3/2- Wege Magnetventil, 24 V DC, G 1/4'' - ATEX Anwendungen - Zone 1
Show
3/2- Wege Magnetventil, 230 V AC, G 1/4'', ATEX Anwendungen - Zone 1

ZMA1412

3/2- Wege Magnetventil, 230 V AC, G 1/4'', ATEX Anwendungen - Zone 1
Show
