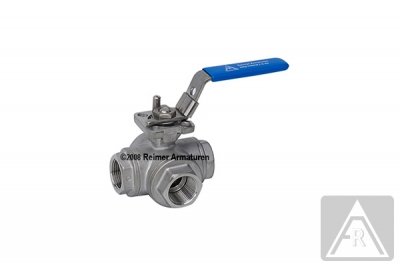

3- way ball valve - stainless steel, Rp 3/8", PN 40, T-bore

Article number: D318T03

3-way ball valve -stainless steel with T-bore

reduce bore, T= -20 up to 180°C, sealed on all ports, not overcutting free, threaded connection acc. to DIN 2999, with mounting pad acc. to DIN ISO 5211, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: PTFE+15%gf, stem seal: PTFE+Viton, handlever: stainless steel (lockable)

Data sheet D318T

Article overview

Article no	D318T02	D318T03	D318T04	D318T05	D318T06	D318T07	D318T08	D318T09
Nominal pressure [bar]	40	40	40	40	40	40	40	40
Overall length [mm]	0	0	0	0	0	0	0	149
Weight [kg]	0.75	0.75	0.75	1.07	1.68	2.44	3.61	5.81
	Show	Show	Show	Show	Show	Show	Show	Show

Technical information

Product group

Ball valves

Design

3-way

Connection method

Thread

Material

Stainless steel

Actuation type

Manually

Nominal width / Thread

3/8"

Approval

Without approval

Weight

750 g
