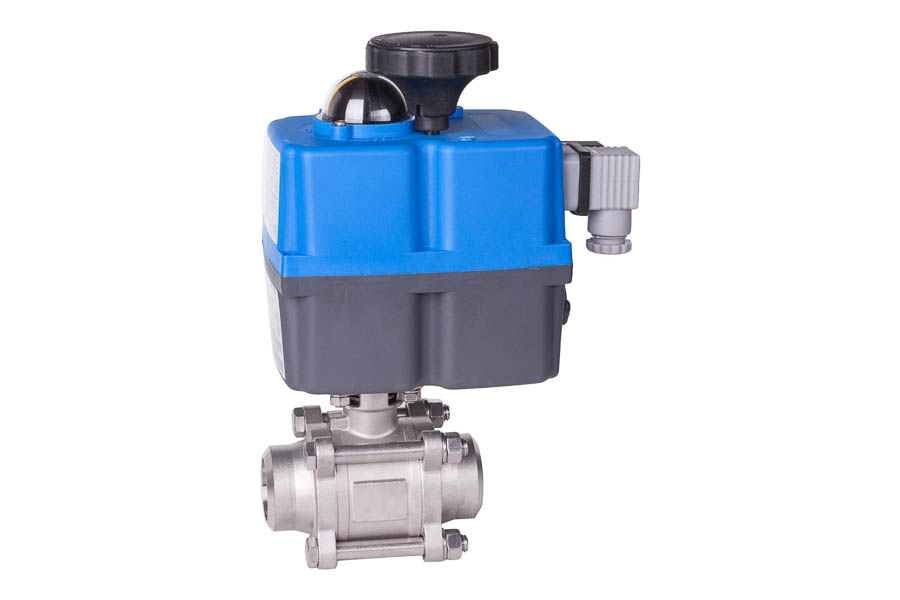

2-way ball valve - stainless steel, DN 8, PN 40, butt weld - electrically operated (230 V)
Article number: D358AEL02
2-way ball valve -stainless steel -butt weld
full bore, 3- piece design, T= -20 up to 180°C, face to face acc. to DIN3202 S13, with mounting pad acc. to DIN ISO 5211, body: stainless steel-1.4408, ball: stainless steel-1.4408, seats: PTFE+15%gf, stem seal: PTFE, Electric actuator 1AL020 - 24 V AC/DCwith 90° rotation, torque: 20 Nm/25 Nm, 12-24 V AC/DC, operating time: 17s, IP 67, -20°C up to 70°C, duty: 75%, min/max. current: 0, 18 A - 2, 14 A, heater: 4 W, plastic housing (Nylon PA6), electronic torque limiting, optical position indicator, two limit switches for signal Open/Close, manual override
Article overview
Article no | D358AEL02 | D358AEL03 | D358AEL04 | D358AEL05 | D358AEL06 | D358AEL07 | D358AEL08 | D358AEL09 | D358AEL10 | D358AEL11 |
---|---|---|---|---|---|---|---|---|---|---|
Nominal pressure [bar] | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
Overall length [mm] | 70 | 70 | 75 | 90 | 100 | 110 | 125 | 150 | 190 | 220 |
Weight [kg] | 1.89 | 1.87 | 1.9 | 2.06 | 2.46 | 3.8 | 5.54 | 7.08 | 12.26 | 17.47 |
Price EUR(1) | 311.64 | 311.64 | 311.64 | 318.16 | 347.22 | 404.13 | 545.07 | 595.89 | 922.70 | 1190.44 |
Show | Show | Show | Show | Show | Show | Show | Show | Show | Show |
Technical information
