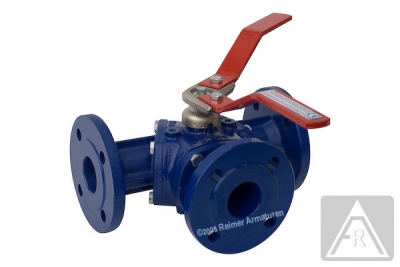

3-way Flange ball valve - GGG-40, DN 150, PN 16

Article number: E050114

3-way ball valve with flanged connection -with 120° bore

full bore, T= -10 up to 100°C, sealed on all ports, body: GGG-40, flange ends: GG-25, ball: stainless steel-AISI304, seats: RTFE, stem: stainless steel-AISI304, stem seal: NBR, handlever: steel

4392.51 EUR
plus VAT., plus shipping costs

Data sheet E0501

Article overview

Article no	E050109	E050110	E050111	E050112	E050113	E050114
Nominal pressure [bar]	16	16	16	16	16	16
Overall length [mm]	320	350	390	430	490	570
Weight [kg]	20	25	34.5	44	70	104
Price EUR⁽¹⁾	797.39	1021.76	1253.49	1569.50	2928.34	4392.51
	Show	Show	Show	Show	Show	Show

Technical information

Product group

Ball valves

Design

3-way

Connection method

Flange type

Material

GGG

Actuation type

Manually

Nominal width / Thread

DN 150

Approval

Without approval

Weight

104000 g

Overall length

570 mm

E050109

3-way Flange ball valve - GGG-40, DN 50, PN 16

797.39 EUR ⁽¹⁾

Show

E050110

3-way Flange ball valve - GGG-40, DN 65, PN 16

1021.76 EUR ⁽¹⁾

Show

E050111

3-way Flange ball valve - GGG-40, DN 80, PN 16

1253.49 EUR ⁽¹⁾

Show

E050112

3-way Flange ball valve - GGG-40, DN 100, PN 16

1569.50 EUR ⁽¹⁾

Show

E050113

3-way Flange ball valve - GGG-40, DN 125, PN 16

2928.34 EUR ⁽¹⁾

Show
