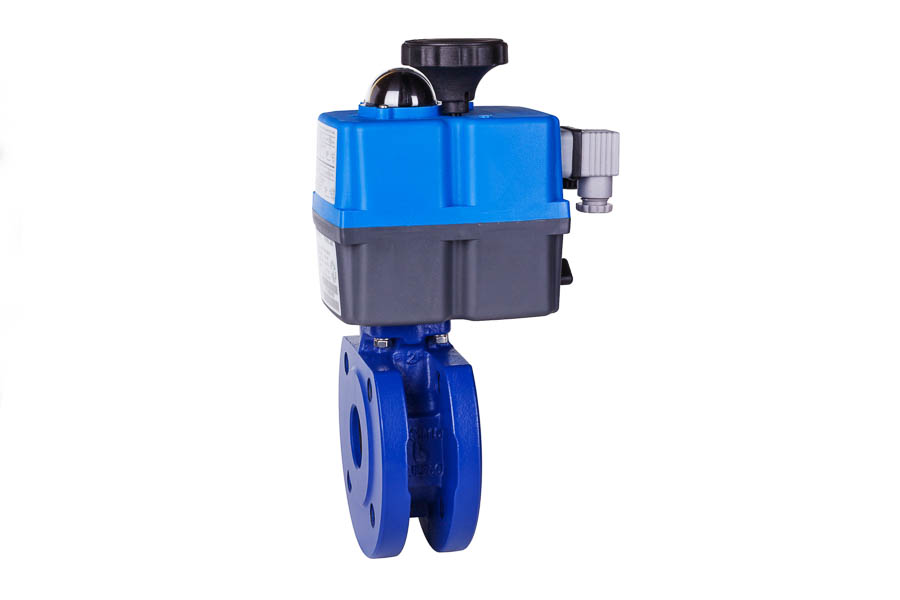

2-way wafer-type ball valve - GG-25, DN 50, PN 16 - electrically operated (230 V)
Article number: E100EH09
2-way ball valve -wafer type -GG-25
full bore, T= -10 up to 100°C, flanges with threaded holes (metric) , body: GG-25, ball: brass-chrome plated, seats: RTFE, stem seals: NBRElectric actuator 1AH055 - 230 V AC/DCwith 90° rotation, torque: 55 Nm/ 60 Nm, 85-240 V AC/DC, operating time: 14s, IP 67, -20°C up to 70°C, duty: 75%, min/max. current: 0, 04 A - 0, 31 A, heater: 4 W, plastic housing (Nylon PA6), electronic torque limiting, optical position indicator, two limit switches for signal Open/Close, manual override
Article overview
Technical information
Product group
Ball valves
Design
2-way
Connection method
Wafer type
Material
GG-25
Actuation type
Electrically
Nominal width / Thread
DN 50
Approval
Without approval
Weight
5500 g
Overall length
80 mm
