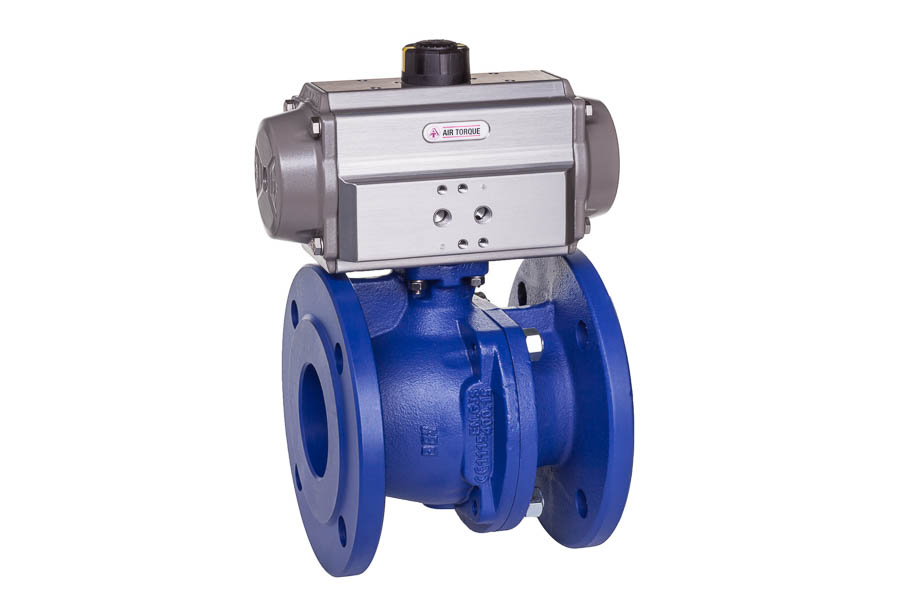

2-way Flange ball valve - GGG-40, DN 100, PN 16 - pneumatically operated (double acting)

2-way Flange ball valve - GGG-40, DN 100, PN 16 - pneumatically operated (double acting)

Article number: E209PD12

2-way ball valve -flange type -GGG-40

2-piece body, full bore, T= -10 up to 100°C, face to face acc. to EN 558-1 row 14, body: GGG-40, ball: brass-chrome plated, seats: RTFE, stem seals: NBRPneumatic actuator - double actingtype 1BRD150, control pressure: 6-8 bar (other control pressure on request), temperature: -20°C up to 80°C, media: clean air (ISO 8573-1:2001)

Article overview

Article no E209PD04 E209PD05 E209PD06 E209PD07 E209PD08 E209PD09 E209PD10 E209PD11 E209PD12
Nominal pressure [bar] 16 16 16 16 16 16 16 16 16
Overall length [mm] 115 120 125 130 140 150 170 180 190
Weight [kg] 3.2 3.8 4.5 7.1 7.8 10.6 14.9 19.2 25.2
Show Show Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
2-way
Connection method
Flange type
Material
GGG
Actuation type
Pneumatically
Nominal width / Thread
DN 100
Approval
Without approval
Weight
25200 g
Overall length
190 mm

Accessories

Endschalterbox mit Mikroschalter- 24 V / 230 V

ZE1001

Endschalterbox mit Mikroschalter- 24 V / 230 V
Show
Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V

ZE1101

Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V
Show
Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V

ZE1201

Endschalterbox aus Aluminium mit Mikroschalter- 24 V / 230 V
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 10...30 V DC, 5 m Kabel

ZE1301

Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 10...30 V DC, 5 m Kabel
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator IFM, 10...36 V DC, M12

ZE1401

Positionsrückmeldung AUF/ZU, Doppelinitiator IFM, 10...36 V DC, M12
Show
Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 5 m Kabel - ATEX

ZE1503

Positionsrückmeldung AUF/ZU, Doppelinitiator Pepperl+Fuchs, 5 m Kabel - ATEX
Show
Endschalterbox mit Mikroschalter- 24 V / 230 V - ATEX

ZE1611

Endschalterbox mit Mikroschalter- 24 V / 230 V - ATEX
Show
5/2- Wege Magnetventil, 24 V DC, G 1/4'', Namur-Lochbild

ZMA2101

5/2- Wege Magnetventil, 24 V DC, G 1/4'', Namur-Lochbild
Show
5/2- Wege Magnetventil, 230 V AC, G 1/4'', Namur-Lochbild

ZMA2204

5/2- Wege Magnetventil, 230 V AC, G 1/4'', Namur-Lochbild
Show
5/2- Wege Magnetventil, 24 V DC, G 1/4'', ATEX Anwendungen - Zone 1

ZMA2311

5/2- Wege Magnetventil, 24 V DC, G 1/4'', ATEX Anwendungen - Zone 1
Show
5/2- Wege Magnetventil, 230 V AC, G 1/4'', ATEX Anwendungen - Zone 1

ZMA2412

5/2- Wege Magnetventil, 230 V AC, G 1/4'', ATEX Anwendungen - Zone 1
Show
