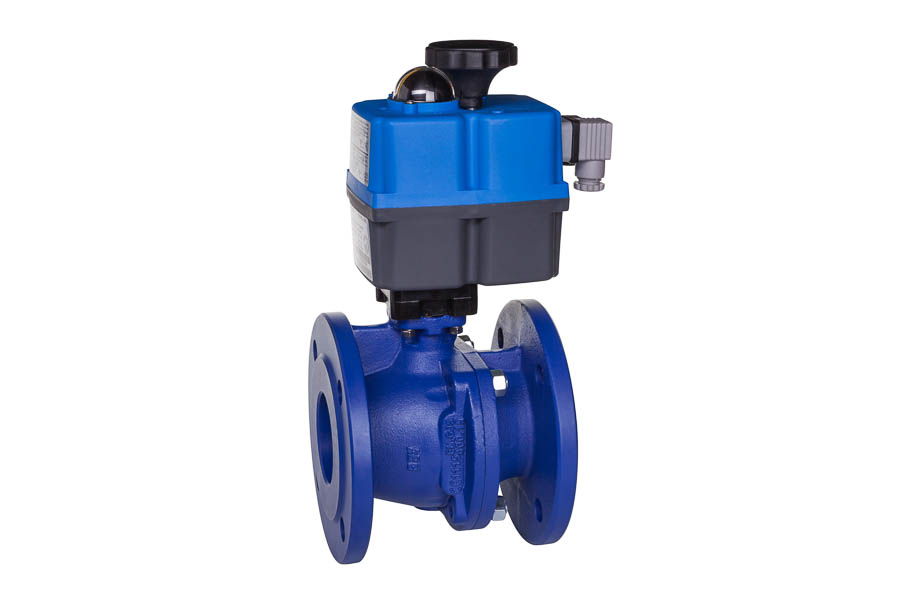

2-way Flange ball valve - GGG-40, DN 15, PN 16 - electrically operated (230 V)
Article number: E211EH04
2-way ball valve -flange type -GGG-40
2-piece body, full bore, T= -10 up to 100°C, face to face acc. to EN 558-1 row 14, body: GGG-40, ball: stainless steel-1.4301, seats: RTFE, stem seals: NBRElectric actuator 1AH020 - 230 V AC/DCwith 90° rotation, torque: 20 Nm/25 Nm, 85-240 V AC/DC, operating time: 11s, IP 67, -20°C up to 70°C, duty: 75%, min/max. current: 0, 01 A - 0, 21 A, heater: 4 W, plastic housing (Nylon PA6), electronic torque limiting, optical position indicator, two limit switches for signal Open/Close, manual override
Article overview
| Article no | E211EH04 | E211EH05 | E211EH06 | E211EH07 | E211EH08 | E211EH09 | E211EH10 | E211EH11 | E211EH12 |
|---|---|---|---|---|---|---|---|---|---|
| Nominal pressure [bar] | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Overall length [mm] | 115 | 120 | 125 | 130 | 140 | 150 | 170 | 180 | 190 |
| Weight [kg] | 4.5 | 4.5 | 4.8 | 6.4 | 8.1 | 11.4 | 12.9 | 15.5 | 23.5 |
| Price EUR(1) | 343.41 | 344.48 | 408.71 | 422.40 | 454.00 | 574.02 | 626.25 | 910.66 | 1159.02 |
| Show | Show | Show | Show | Show | Show | Show | Show | Show |
Technical information
