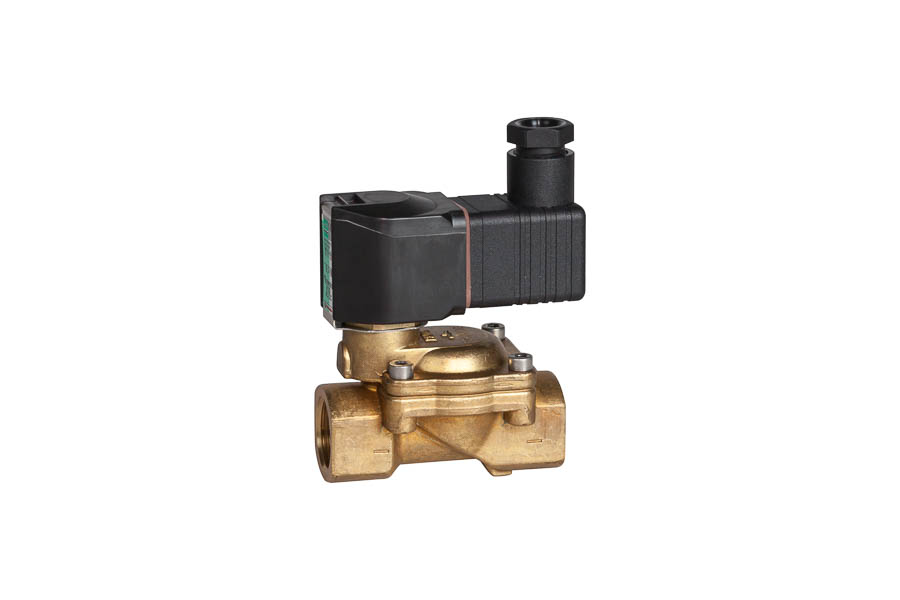

2/2-way Solenoid valve - brass, indirectly solenoid actuated, G 3/4", PN16, female/female, operating pressure: 0,1...16 bar, 24 V DC (normally closed) - for neutral gases and liquids
Article number: MV01L05
2/2-way Solenoid valve -brass, 24 V DC (normally closed)
indirectly solenoid actuated, for neutral gases and liquids, DN 20, kv= 6, 1 m3/h, T=-10 up to 90°C (fluid), operating pressure: 0, 1 up to 16 bar, IP 65, determined flow direction, damped operation, body: brass, seat seal: NBR, internal parts: stainless steel, PVDFon request: normally open (NO), seat seal made of FPM or EPDM, manual override
Article overview
Technical information
Product group
Solenoid valves
Design
2-way
Connection method
Thread
Material
Brass
Actuation type
Electrically
Nominal width / Thread
3/4"
Approval
Without approval
Weight
650 g
