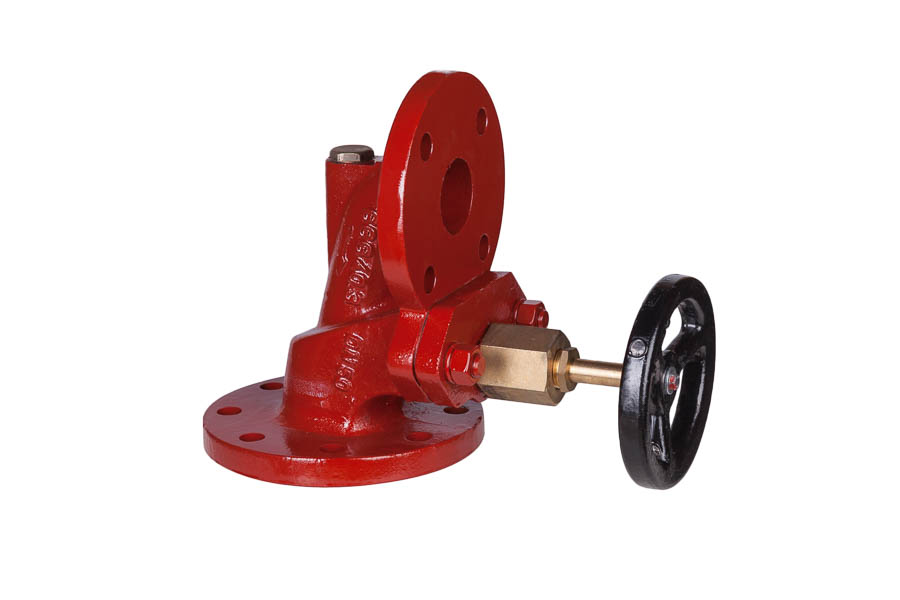

Storm valve, HNA Sr 6 form B - body: GGG-40.3 / seat: Rg5+NBR, DN 125, PN 4, angle form - with closing device

Storm valve, HNA Sr 6 form B - body: GGG-40.3 / seat: Rg5+NBR, DN 125, PN 4, angle form - with closing device

Article number: O201013

Storm valve, HNA Sr 6 form B, angle form -with closing device

PN 4, flange drilling acc. to DIN PN 10, T= -10°C up to max. 60°C, body: GGG-40-3 / EN-GJS400-18-LT, disc: Rg5(CC491K)+NBR(vulcanized), stem+locking device: Ms58-CW614N), handwheel: GG-25

Article overview

Article no O201009 O201010 O201011 O201012 O201013 O201014 O201015 O201016 O201017
Nominal pressure [bar] 4 4 4 4 4 4 4 4 4
Overall length [mm] 180 200 215 250 290 330 425 630 650
Weight [kg] 12 14 20 25 36 43 72 110 150
Show Show Show Show Show Show Show Show Show

Technical information

Product group
Swing check valves
Design
2-way
Connection method
Flange type
Nominal width / Thread
DN 125
Weight
36000 g
Overall length
290 mm
