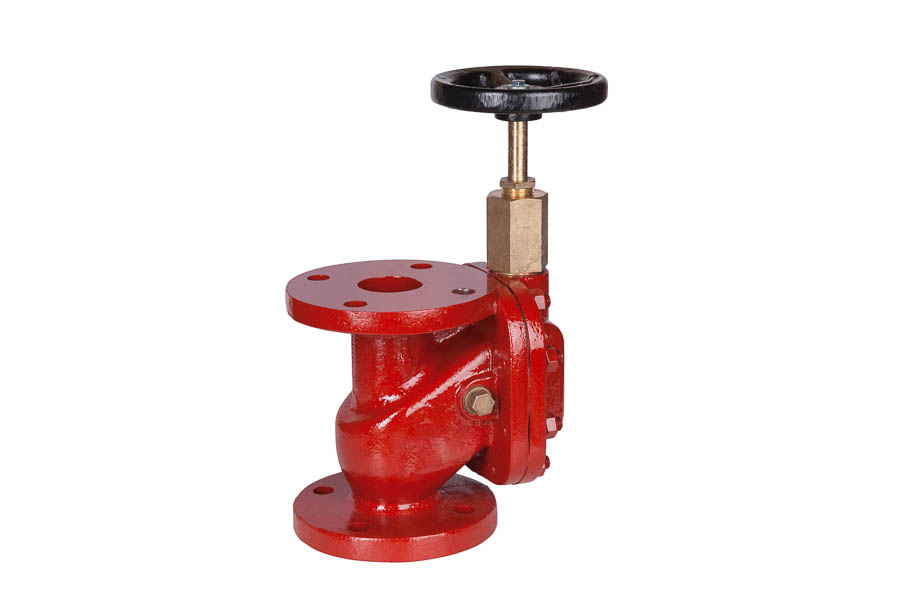

Storm valve, DIN 87101 form A - body: GGG-40.3 / seat: Rg5+NBR, DN 80, PN 4, straightway form - without closing device

Storm valve, DIN 87101 form A - body: GGG-40.3 / seat: Rg5+NBR, DN 80, PN 4, straightway form - without closing device

Article number: O205011

Storm valve, DIN 87101 form A, straightway form -without closing device

PN 4, flange drilling acc. to DIN PN 10, face to face acc. to EN 558-1 row 48, T= -10°C up to max. 60°C, body: GGG-40-3 / EN-GJS400-18-LT, disc: Rg5(CC491K)+NBR(vulcanized)

Article overview

Article no O205009 O205010 O205011 O205012 O205013 O205014 O205015 O205016
Nominal pressure [bar] 4 4 4 4 4 4 4 4
Overall length [mm] 200 240 260 300 350 400 500 600
Weight [kg] 14 17 22 28 42 55 101 150
Show Show Show Show Show Show Show Show

Technical information

Product group
Swing check valves
Design
2-way
Connection method
Flange type
Nominal width / Thread
DN 80
Weight
22000 g
Overall length
260 mm
