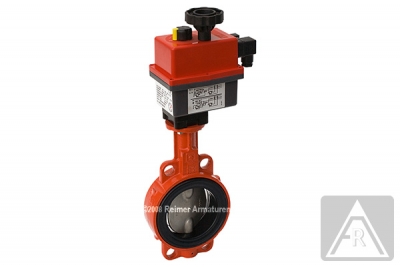

Butterfly valve - wafer type, DN 32, PN 16, GGG-40/1.4408/NBR- electrically operated (24 V)

Butterfly valve - wafer type, DN 32, PN 16, GGG-40/1.4408/NBR- electrically operated (24 V)

Article number: Q9WJ1N07

Butterfly Valve -wafer type -seat: NBR

soft sealing, centric disc, one piece body, face to face acc. to EN 558-1 row 20, to be mounted between two flanges acc. to DIN EN 1092-1/11/B1 (PN6/PN10/PN16), max. working pressure: 16 bar, working temperature: -10 up to 80°C, body: GGG-40, disc: stainless steel-1.4408, stem: stainless steel-1.4021, seat: NBR, stem sealing: NBRElectric actuator 1AL020 - 24 V AC/DCwith 90° rotation, torque: 20 Nm/25 Nm, 12-24 V AC/DC, operating time: 17s, IP 67, -20°C up to 70°C, duty: 75%, min/max. current: 0, 18 A - 2, 14 A, heater: 4 W, plastic housing (Nylon PA6), electronic torque limiting, optical position indicator, two limit switches for signal Open/Close, manual override

Article overview

Article no Q9WJ1N07 Q9WJ1N08 Q9WJ1N09 Q9WJ1N10 Q9WJ1N11 Q9WJ1N12 Q9WJ1N13 Q9WJ1N14
Nominal pressure [bar] 16 16 16 16 16 16 16 16
Overall length [mm] 33 33 43 46 46 52 56 56
Weight [kg] 3.9 3.9 4.45 5.7 6.6 8 12.9 14.2
Show Show Show Show Show Show Show Show

Technical information

Product group
Butterfly valves
Design
Softseated
Connection method
Intermediate flange
Material
GGG
Actuation type
Electrically
Nominal width / Thread
DN 32
Approval
Without approval
Weight
3900 g
Overall length
33 mm
