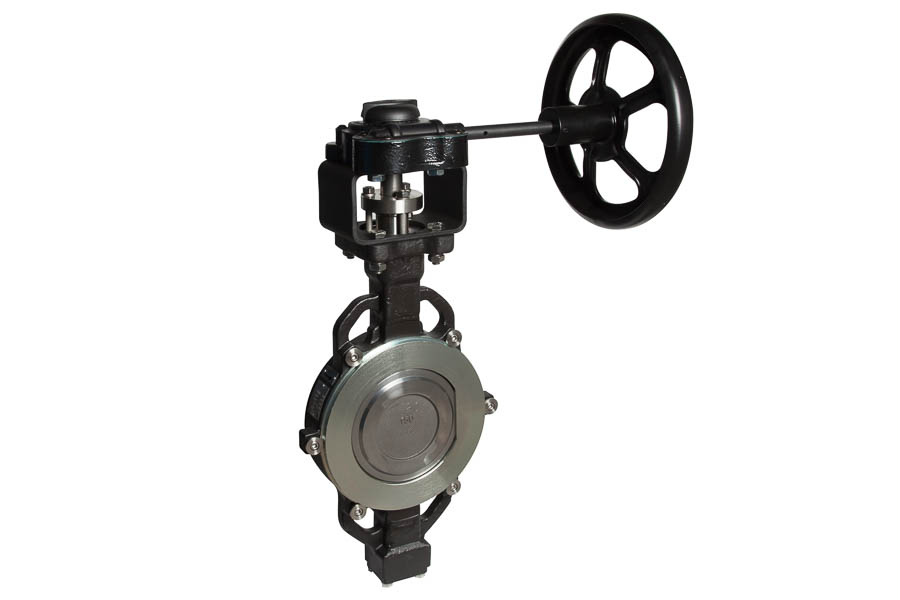

High performance butterfly valve - wafer type, DN 150, PN 40, Steel/1.4021/RTFE

High performance butterfly valve - wafer type, DN 150, PN 40, Steel/1.4021/RTFE

Article number: QDWHPC14

High performance butterfly valve -wafer type -Steel/PTFE

double eccentric construction, face to face acc. to EN 558-1 row 20, to be mounted between two flanges acc. to DIN EN 1092-1/11/B1 (PN10/PN16/PN25/PN40), max. working pressure: 40 bar, working temperature: -30 up to 200°C, body: cast steel-1.0625, disc: stainless steel-1.4021, stem: stainless steel-1.4021, seat: RTFE, stem sealing: Graphite, with handlever (gearbox on request)

Data sheet QDWHPC

Article overview

Article no QDWHPC09 QDWHPC10 QDWHPC11 QDWHPC12 QDWHPC13 QDWHPC14 QDWHPC15 QDWHPC16 QDWHPC17
Nominal pressure [bar] 40 40 40 40 40 40 40 25 25
Overall length [mm] 44 47 47 53 56 57 61 69 79
Weight [kg] 5.1 5.8 6.8 8.5 11.8 21 29 46 67
Show Show Show Show Show Show Show Show Show

Technical information

Product group
Butterfly valves
Design
High-Performance
Connection method
Intermediate flange
Material
Steel
Actuation type
Manually
Nominal width / Thread
DN 150
Approval
Without approval
Weight
21000 g
Overall length
57 mm
