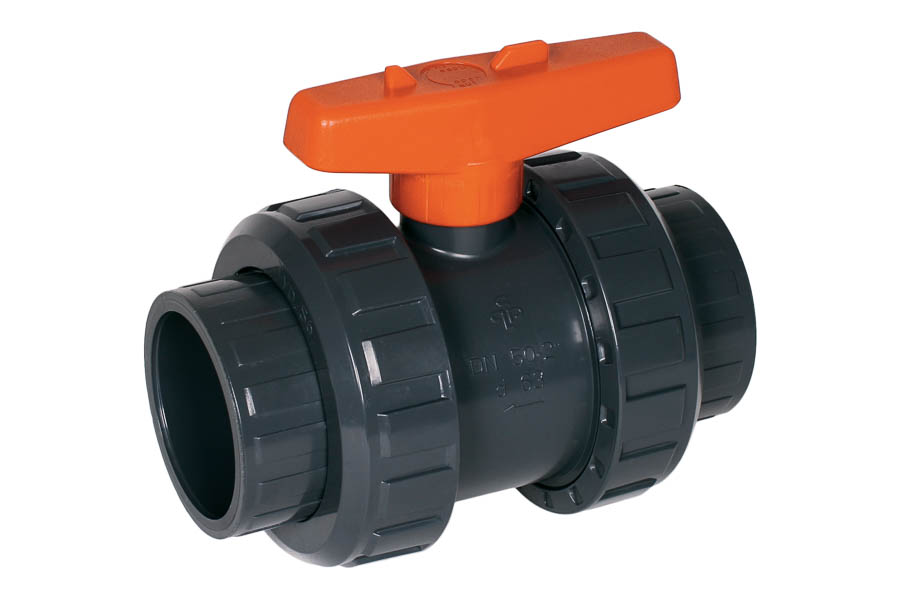

2-way ball valve PVC-U, ball seats PTFE, G 1 1/2", PN 16, female/female
Article number: U010108
2-way ball valve -PVC-U -female/female
full bore, T= 0 up to 60°C, threaded end connections acc. to DIN ISO 228, radial installation or removal, body: PVC-U, ball: PVC-U, seats: PTFE, stem seals: EPDM (on request: FPM), handle: plastic (color red)
Article overview
| Article no | U010103 | U010104 | U010105 | U010106 | U010107 | U010108 | U010109 | U010110 | U010161 |
|---|---|---|---|---|---|---|---|---|---|
| Nominal pressure [bar] | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Overall length [mm] | 83 | 83 | 96 | 105 | 120 | 149 | 175 | 213 | 269 |
| Weight [kg] | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.8 | 1.2 | 2.6 | 4.2 |
| Price EUR(1) | 19.76 | 19.76 | 22.99 | 24.97 | 33.43 | 39.88 | 54.20 | 162.78 | 261.04 |
| Show | Show | Show | Show | Show | Show | Show | Show | Show |
Technical information
Product group
Ball valves
Design
2-way
Connection method
Thread
Material
Plastics
Actuation type
Manually
Nominal width / Thread
1 1/2"
Approval
Without approval
Weight
800 g
Overall length
149 mm
