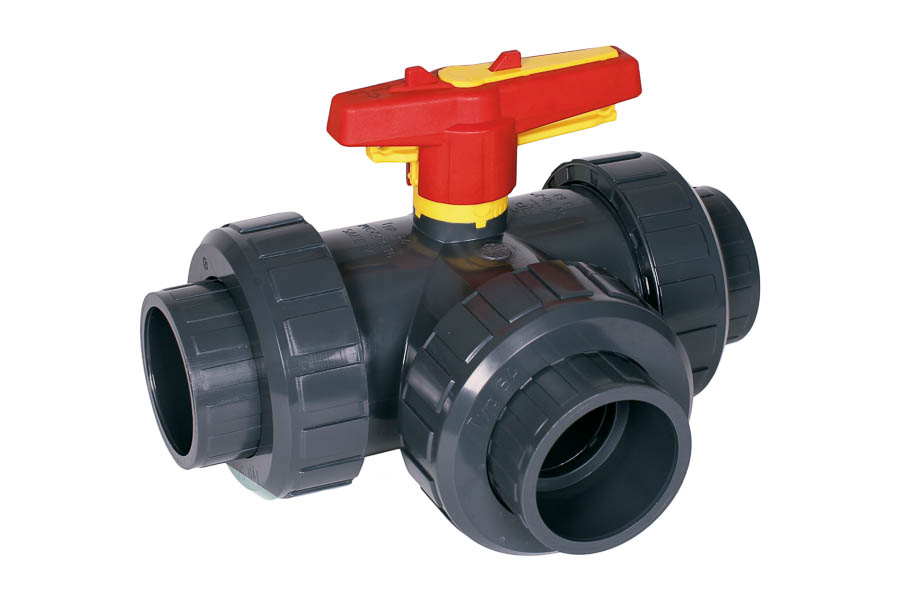

3-way ball valve PVC-U, DN 25, PN 16, solvent socket, T-bore

3-way ball valve PVC-U, DN 25, PN 16, solvent socket, T-bore

Article number: U031T06

3-way ball valve -PVC-U -solvent socket

with T-bore, full bore, T= 0 up to 60°C, solvent socket d= 32 mm, radial installation or removal, body: PVC-U, ball: PVC-U, seats: PTFE, stem seals: EPDM (on request: FPM), handle: plastic (color red), with labelling system (colors: yellow, blue, green or red)

Article overview

Article no U031T03 U031T04 U031T05 U031T06 U031T07 U031T08 U031T09
Nominal pressure [bar] 16 16 16 16 16 16 16
Overall length [mm] 138 138 166 172 224 234 269
Weight [kg] 0.4 0.4 0.9 0.9 1.5 1.9 2
Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
3-way
Material
Plastics
Actuation type
Manually
Nominal width / Thread
DN 25
Approval
Without approval
Weight
900 g
Overall length
172 mm
