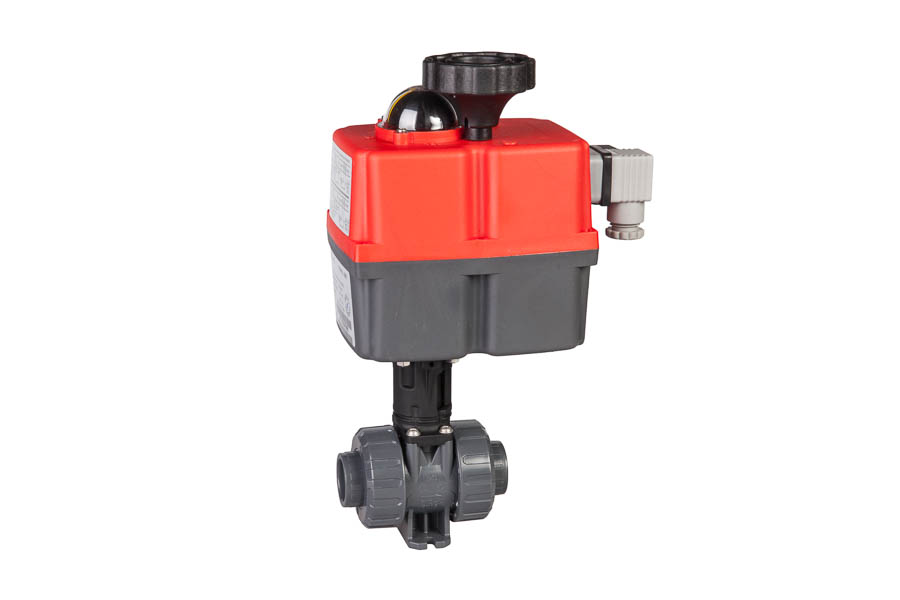

2-way ball valve PVC-U, seats PTFE, DN 40, PN 16, PE fusion socket - electrically operated (24 V)

2-way ball valve PVC-U, seats PTFE, DN 40, PN 16, PE fusion socket - electrically operated (24 V)

Article number: UEL0308

2-way ball valve -PVC-U -PE fusion socket

full bore, T= 0 up to 60°C, PE fusion socket d= 50 mm, radial installation or removal, body: PVC-U, ball: PVC-U, seats: PTFE, stem seals: EPDM (one request: FPM)Electric actuator 1AL020 - 24 V AC/DCwith 90° rotation, torque: 20 Nm/25 Nm, 12-24 V AC/DC, operating time: 17s, IP 67, -20°C up to 70°C, duty: 75%, min/max. current: 0, 18 A - 2, 14 A, heater: 4 W, plastic housing (Nylon PA6), electronic torque limiting, optical position indicator, two limit switches for signal Open/Close, manual override

Article overview

Article no UEL0303 UEL0304 UEL0305 UEL0306 UEL0307 UEL0308 UEL0309
Nominal pressure [bar] 16 16 16 16 16 16 16
Overall length [mm] 0 82 96 0 118 147 0
Weight [kg] 1.15 1.15 1.15 1.25 1.95 2.25 2.65
Show Show Show Show Show Show Show

Technical information

Product group
Ball valves
Design
2-way
Material
Plastics
Actuation type
Electrically
Nominal width / Thread
DN 40
Approval
Without approval
Weight
2250 g
Overall length
147 mm
