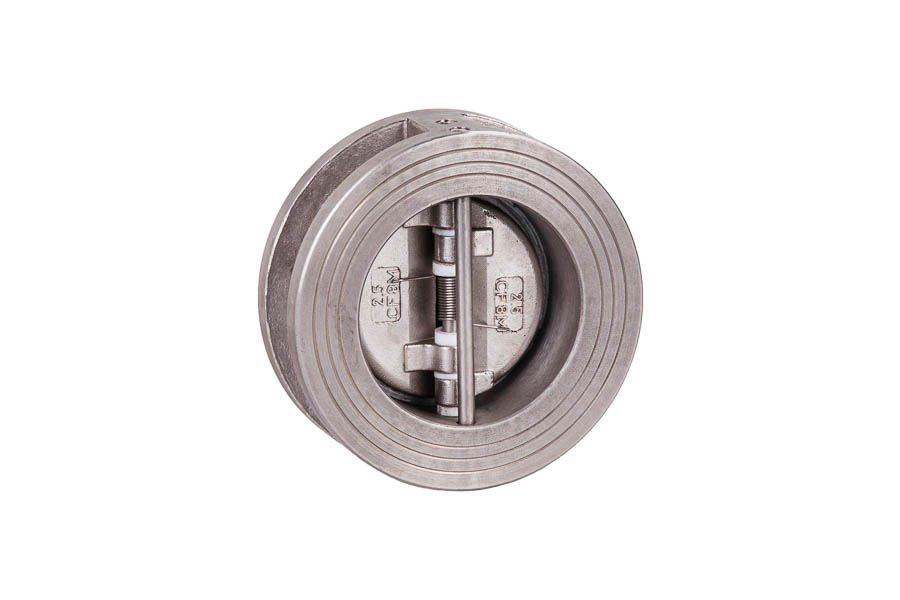

Dual plate check valve - wafer type, DN 200, PN 16, Stainless steel / EPDM

Dual plate check valve - wafer type, DN 200, PN 16, Stainless steel / EPDM

Article number: G120E15

Dual plate check valves -wafer type -Stainless steel / EPDM

T= -10°C up to max. 120°C, to be mounted between flanges acc. to DIN PN 10/16, face to face acc. to EN558-1 row 16, body: stainless steel-1.4408, plates: stainless steel-1.4408, seals: EPDM

Data sheet G120E

Article overview

Article no G120E09 G120E10 G120E11 G120E12 G120E13 G120E14 G120E15 G120E16 G120E17
Nominal pressure [bar] 16 16 16 16 16 16 16 16 10
Overall length [mm] 43 46 64 64 70 76 89 114 114
Weight [kg] 1.5 2.4 3.6 5.7 7.3 9 17 26 42
Show Show Show Show Show Show Show Show Show

Technical information

Product group
Swing check valves
Design
2-way
Connection method
Intermediate flange
Material
Stainless steel
Nominal width / Thread
DN 200
Approval
Without approval
Weight
17000 g
Overall length
89 mm
